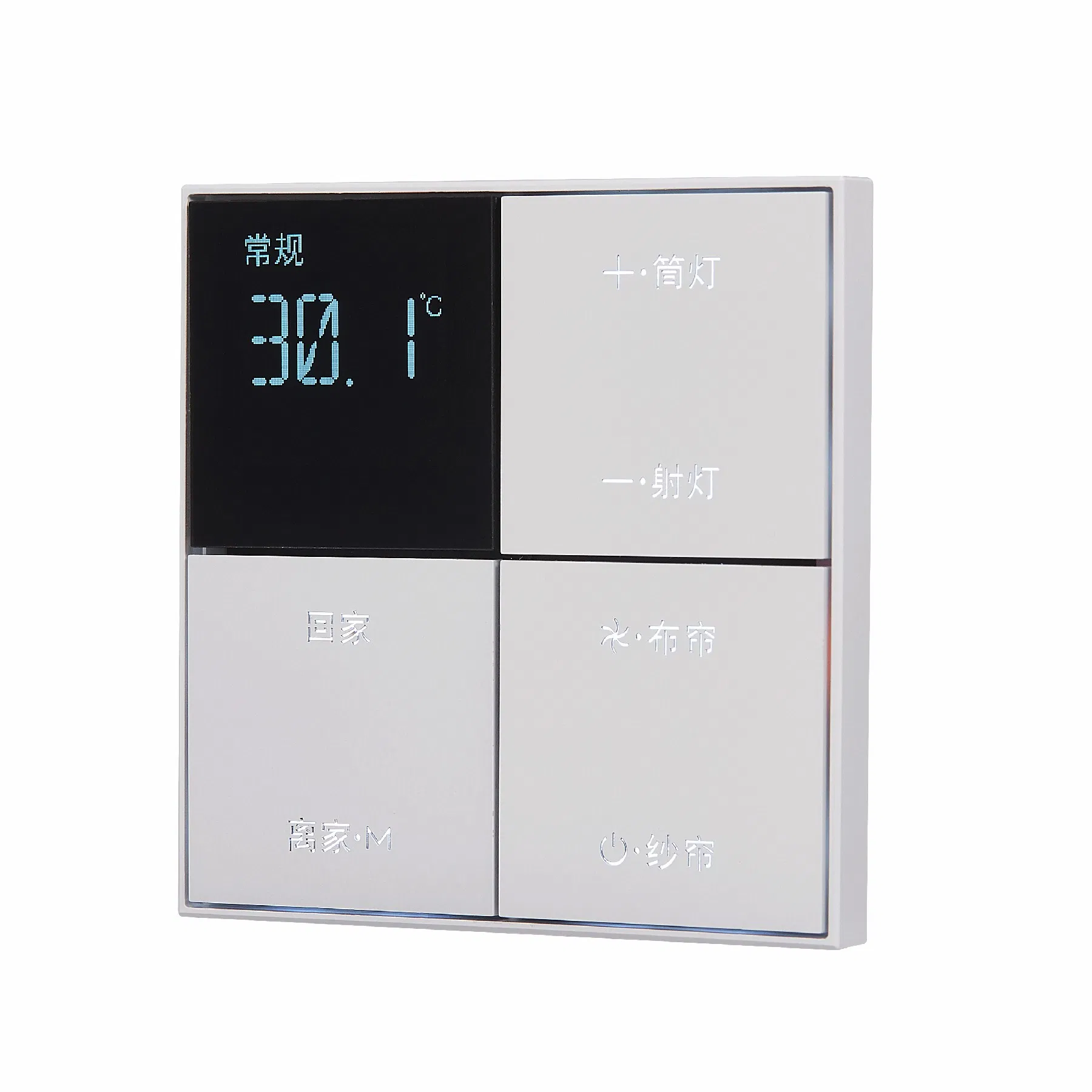

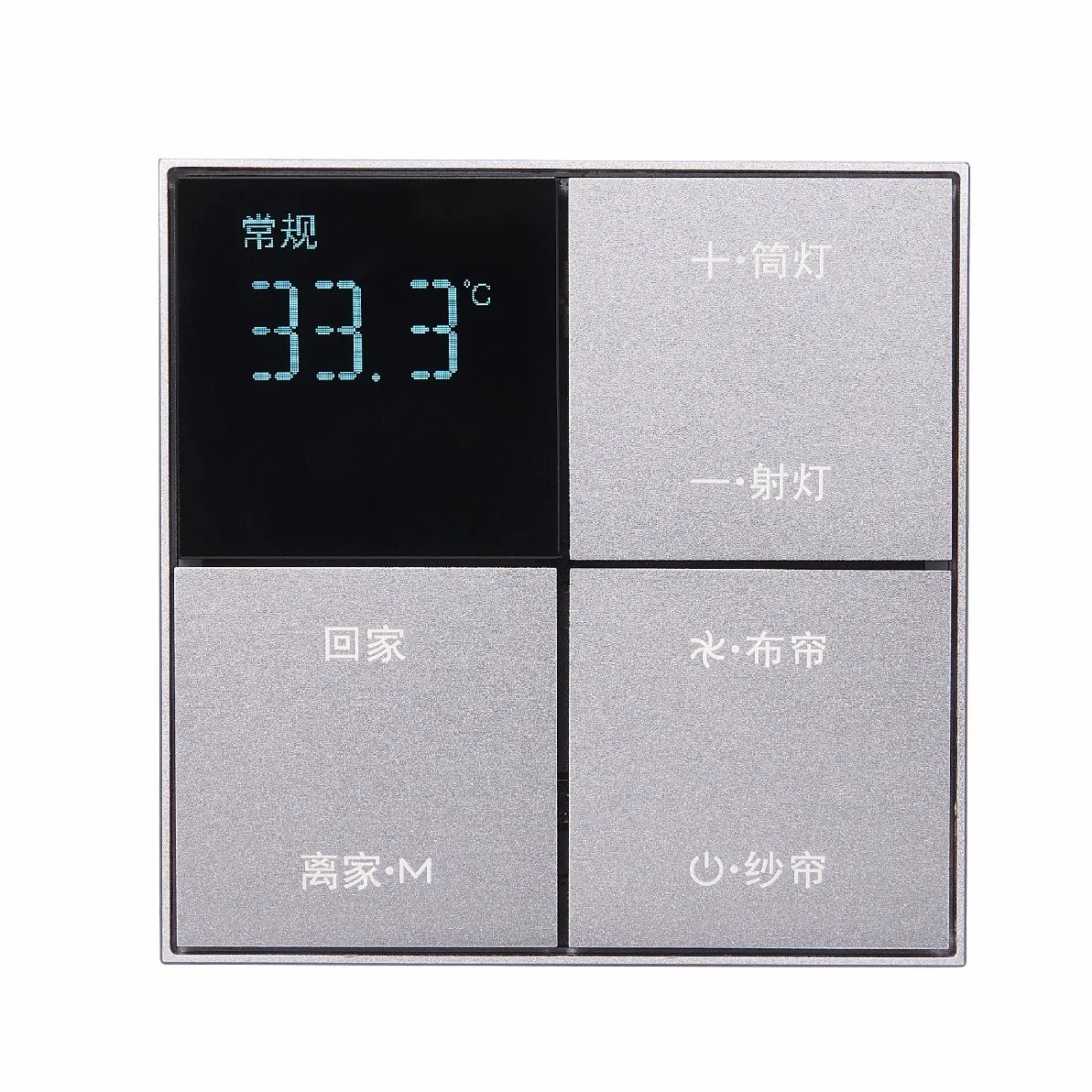

Smart Home Lighting Control System with APP

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

VSU-MK1208

Function

APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control

Material

Plastic

Certification

Bus Voltage

21-30 VDC, Powered by KNX Bus

Bus Current

≤12 Ma

Installation

86-Box Installation

Operating Temp

-5°C to +45°C

📦

Packaging & Delivery

Package Size

25.00cm * 20.00cm * 18.00cm

Gross Weight

3.000kg

Lead Time

3 days (1-100 Pcs); Negotiable (>100 Pcs)

📝

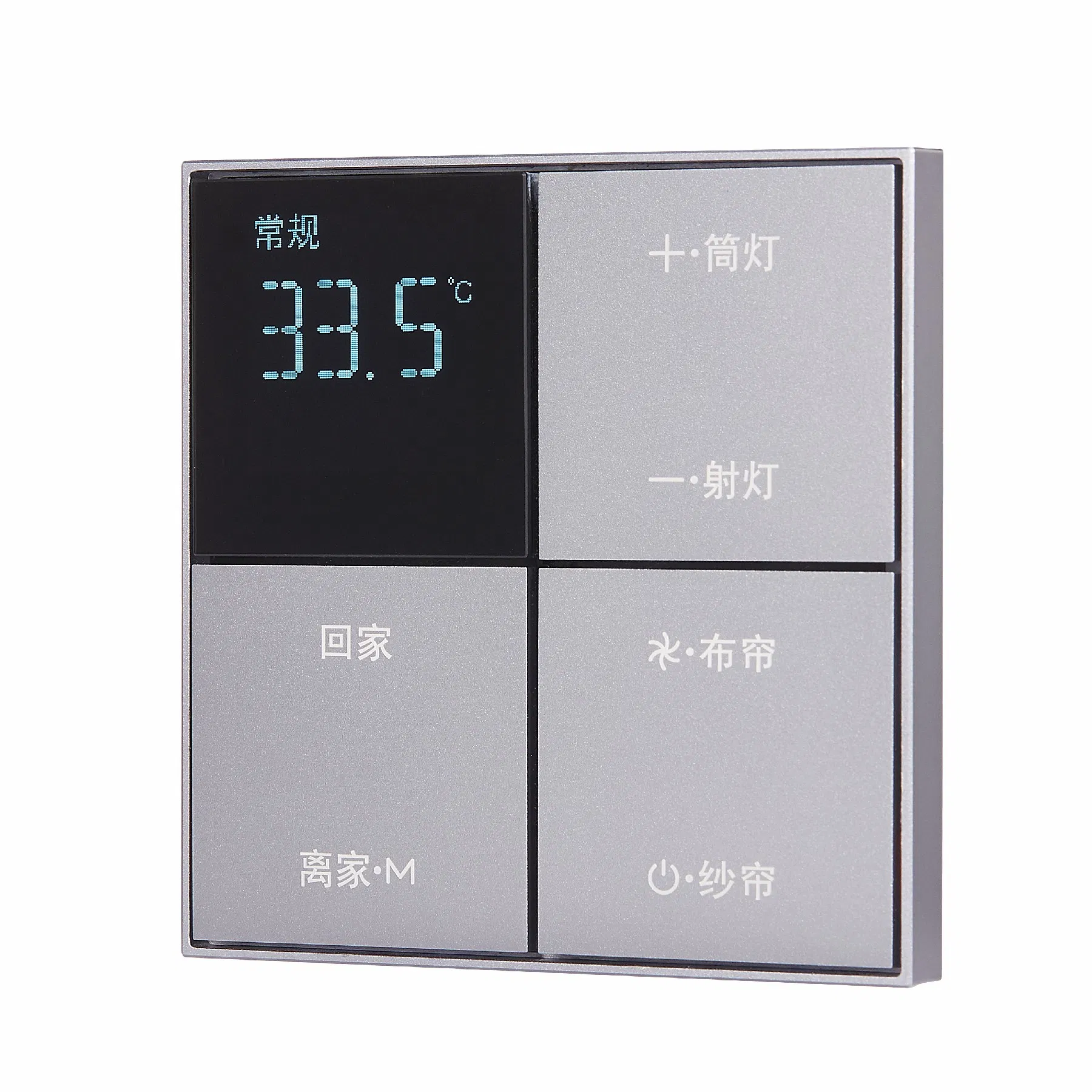

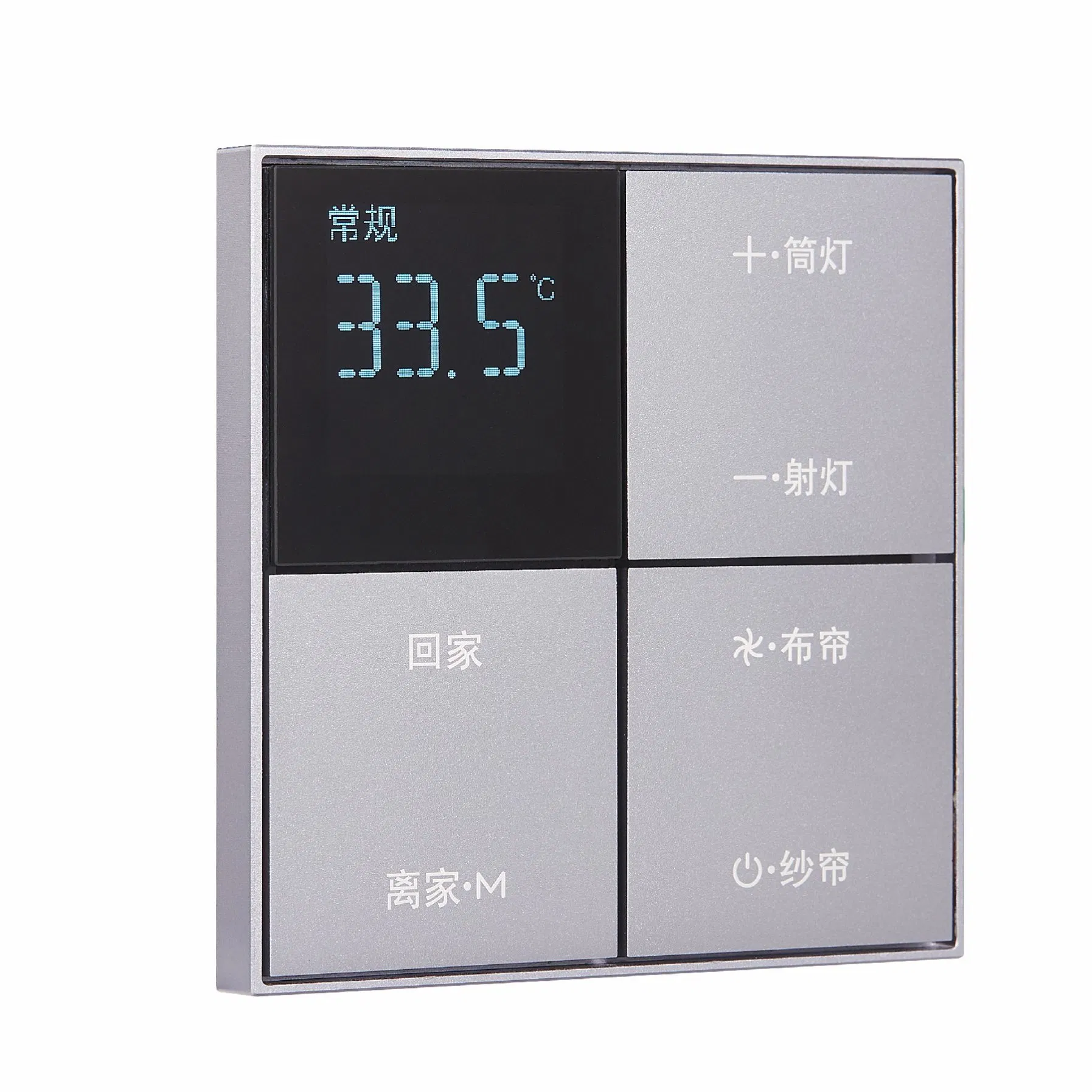

Product Overview

The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system, and its functions are simple and intuitive to operate. Users can plan and systematically execute these functions according to their own needs.

The control panel can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights. It is a standard 86 bottom box installation device with 1-4 or 1-8 button outputs. Connect to the EIB/KNX system via the EIB bus and use the engineering design tool software ETS to allocate physical and group addresses.

⚙

Function Description

Switching lighting, curtain opening/closing, and projection screen lifting with long/short press functions.
Controls dimming devices with relative and absolute dimming output functions.
Performs 8-bit scene control and calls pre-set scene functions.
Equipped with LED indicator functions: normally on, normally off, or flashing states.
Includes LED interlocking grouping and brightness adjustment functions.
Status and backlight LEDs feature brightness wake-up and delayed extinguishing.

📊

Detailed Parameters

Bus Voltage	21-30 VDC, KNX bus power supply
Bus Current	≤12mA
Shell Material	Metal + ABS + PC
Dimensions (HxWxD)	86 x 86 x 33 mm
Installation	86 bottom box
Auxiliary Voltage	24VDC
Auxiliary Power	≤660mW
Relative Humidity	Max 90%

🖼

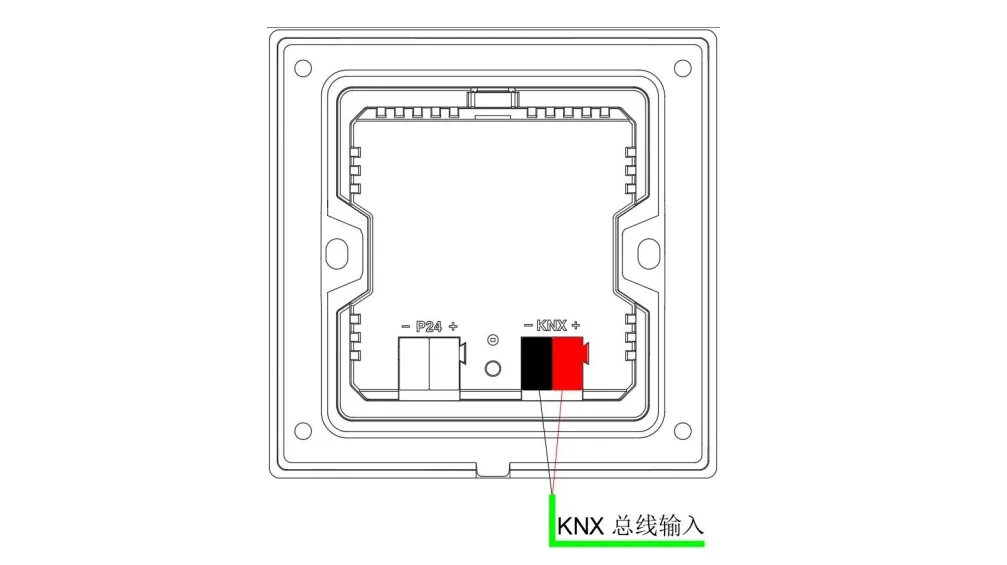

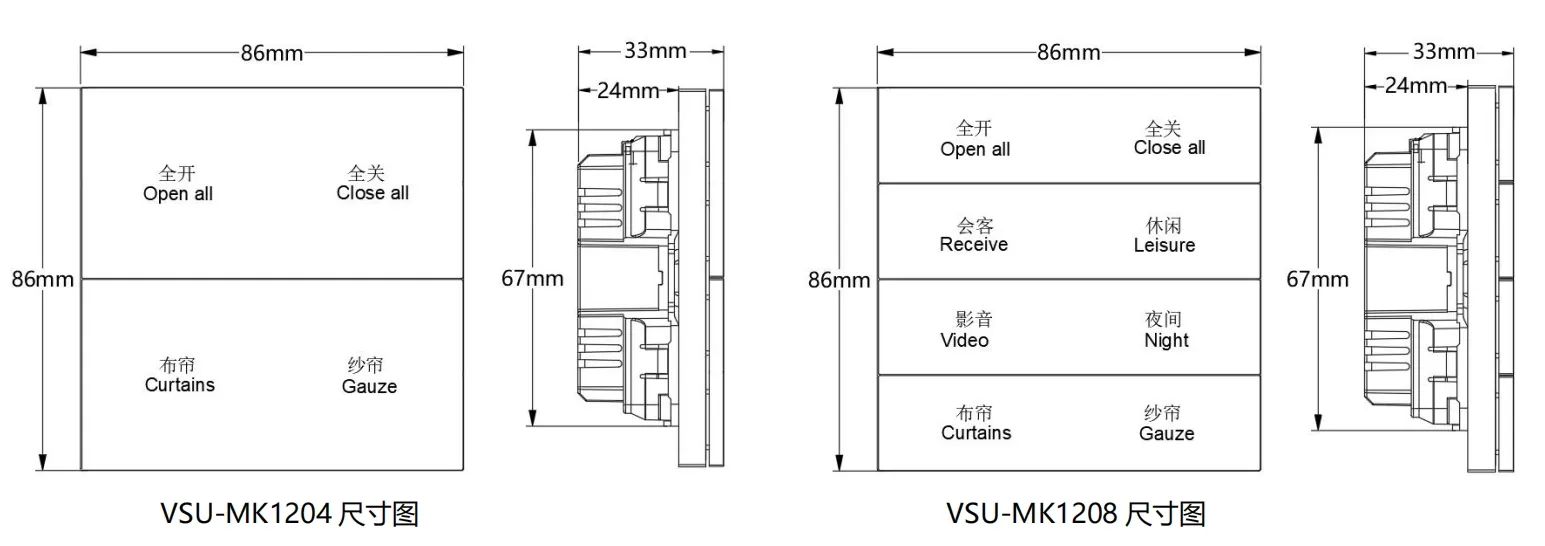

Dimensional and Wiring Diagrams

❓
